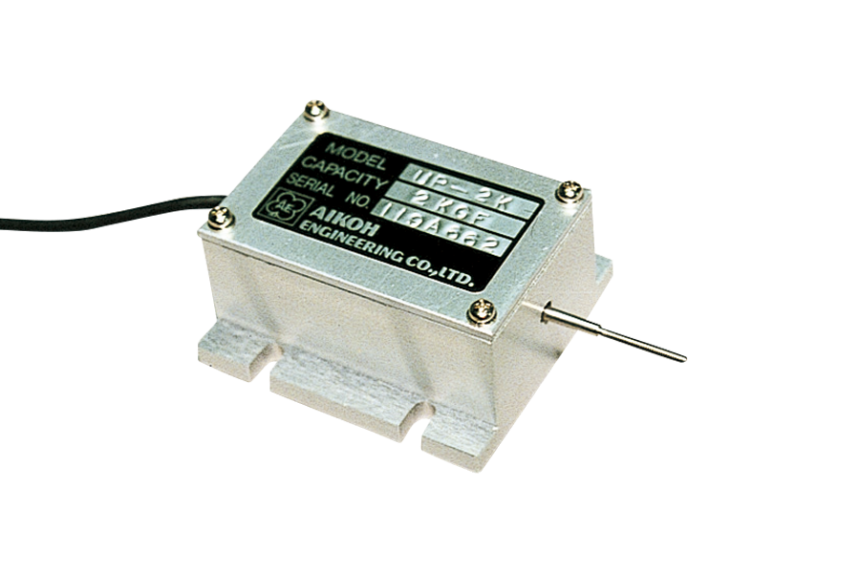

Low-capacity load cell for tensile & compression tests UP Series

  • Most suitable for measurement of small load.
  • Capable of measurement in both tension and compression.

Example of use

  • Used as a load sensor in feeling testers.


UP Series
Rated capacity 5N、20N
Rated output 1.0~1.5mV/V
Nonlinearity 0.2%R.O.
Hysteresis 0.2%R.O.
Repeatability 0.1%R.O.
Recommended applied voltage 6V
Allowable applied voltage 10V
Input/output resistance 350Ω±2%
Temperature compensation range -10~+70℃
Allowable temperature range -20~+80℃
Zero point influence by temperature ±0.01%R.O./℃
Output influence by temperature ±0.01%R.O./℃
Allowable overload 150%R.C. (stopper provided on 5N type)
Cable length 2m
Tip shape 7P connector

Document download and related products

External View(PDF)
