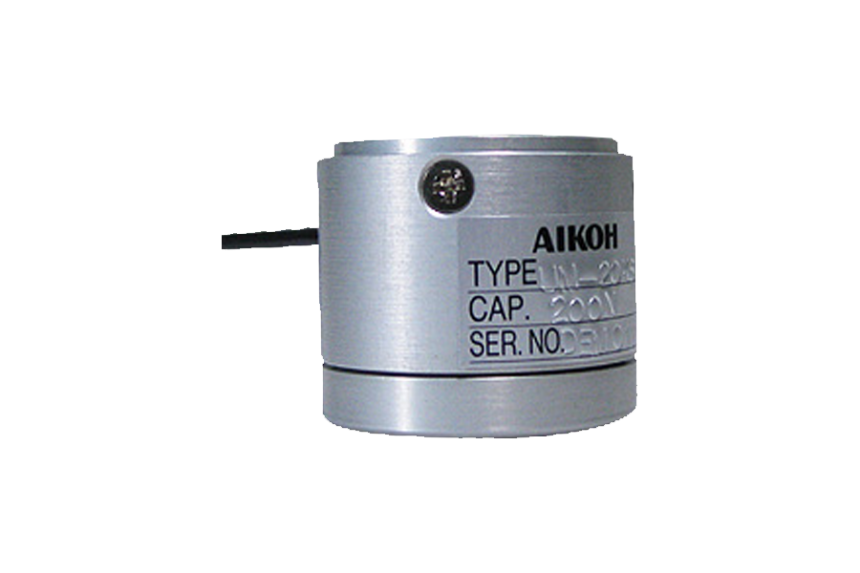

Load cell for tensile & compression tests UM Series

  • A smaller type of M-3000 Series.
  • A highly precise load cell in wide use for tensile and compression tests.
  • Little output difference in tension and compression and stable performance.

Example of use

  • A load cell used in Aikoh’s force testers.

Specifications

UM Series
Rated capacity 20N～200N
Rated output 2mV/V±1％（20N : 1mV/V）
Nonlinearity 0.1％R.O.
Hysteresis 0.1％R.O.
Repeatability 0.1％R.O.
Recommended applied voltage 10V
Allowable applied voltage 15V
Input/output resistance 350Ω±2％
Insulation resistance 1000 MΩ or over
Temperature compensation range -10～+70℃
Allowable temperature range -20～+80℃
Zero point influence by temperature ±0.01％R.O./℃
Output influence by temperature ±0.01％R.O./℃
Allowable overload 150％R.C.
Cable length 3m
Tip shape Y terminal
