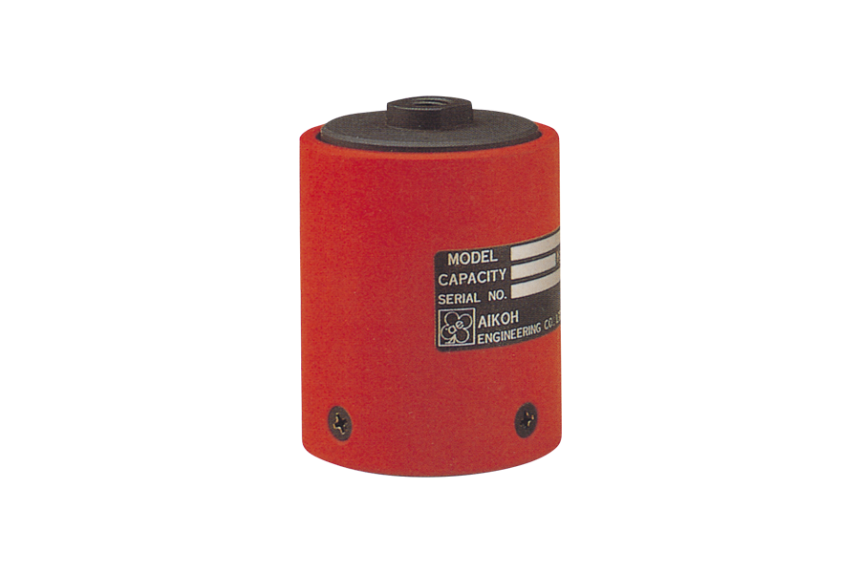

Load cell for tensile & compression tests MODEL-3000 Series

  • A highly precise tensile & compression type load cell in wide use.
  • Little output difference in tension and compression and stable performance.

Example of use

  • A load cell used in Aikoh’s force testers.


MODEL-3000 Series
Rated capacity 20N~20kN
Rated output 20N : 1mV/V±1%
50N~5kN : 2mV/V±1%
10kN~20kN : 1.8mV/V±1%
Nonlinearity 0.1%R.O.
Hysteresis 0.1%R.O.
Repeatability 0.1%R.O.
Recommended applied voltage 20N : 6V
50N~20kN : 10V
Allowable applied voltage 20N : 6V
50N~20kN : 15V
Input/output resistance 350Ω±2%
Insulation resistance 2000 MΩ or over
Temperature compensation range -10~+70℃
Allowable temperature range -20~+80℃
Zero point influence by temperature ±0.1%/10℃
Output influence by temperature ±0.1%R.O./10℃
Allowable overload 150%R.C.
Cable length 2 m (optional)
Tip shape 7P-7P connector or 7P-Y terminal
Option Cable
