Software for Switch feeling testers FSN-500

  • Software for the amplifier MODEL-1016 SWFL.

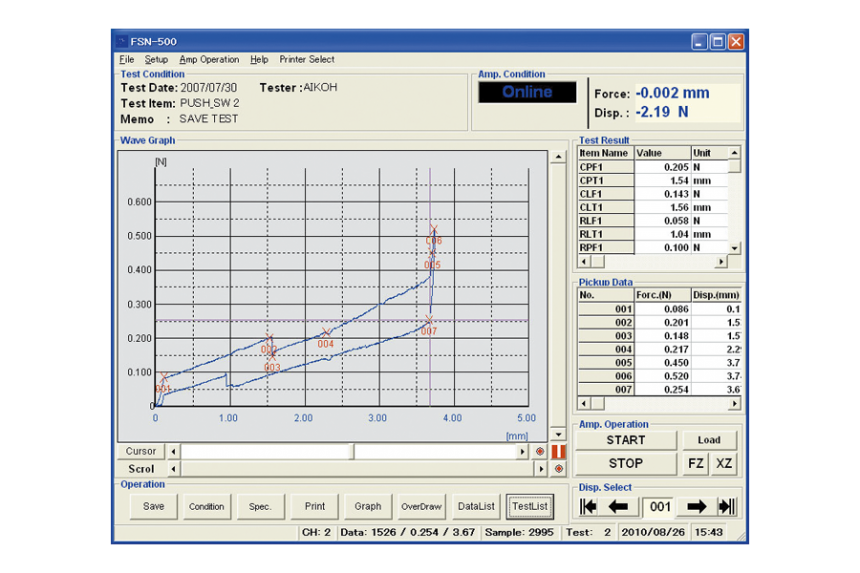

  • Acquisition of force-displacement data and drawing of graphs. (Batch loading after completion of measurement.)
  • Amplifier measurement condition setting (comparator, etc.).
  • Acquisition of all graph data by automatic/repeated tests.
  • Display of a list of data, histograms and statistical data.
  • English OS supported.

Specifications

FSN-500
Name Software for ROM card V-103/CF card V103A
Computer standard DOS/V compliant IBM/PC compatible
Operating system(OS) Microsoft Windows XP, 7,8 : Japanese or English
CPU Intel Core i3 Processor 2.0GHz min.
Main memory 2048 MB min. (4096 MB min. recommended)
Hard disk drive When installed: 20 MB min.
When run: Default 20 MB min.
in conjunction with memory usage capacity setting
Optical drive CD-ROM drive x 1
When this software is installed.
Display CD-ROM drive x 1
When this software is installed.
Communication port USB port x 1
