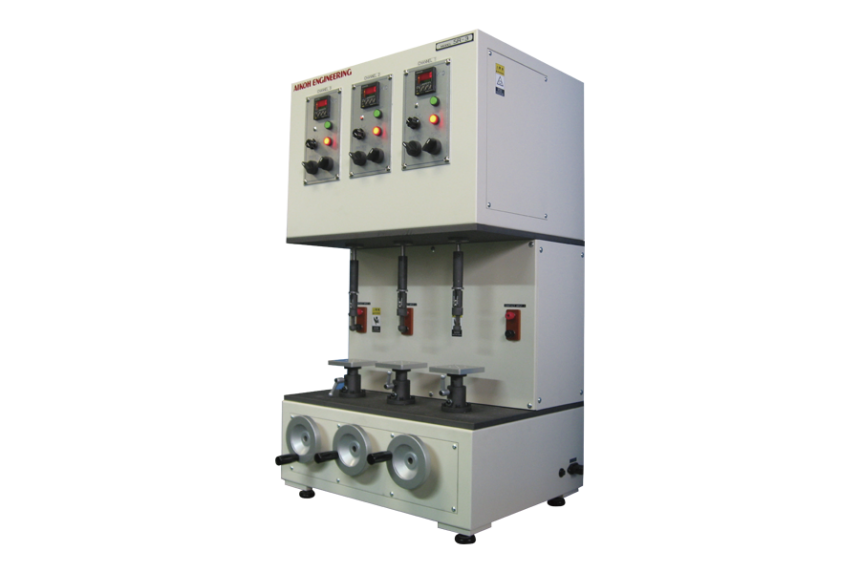

Switch, silicone endurance tester SR Series

  • Designed for endurance test of various electronic parts.

Example of use

  • Endurance test of key switches, silicone rubber switches, keyboards, etc.
  • Up to five channels available.

Specifications

MODEL-SR-1
(1ch)
MODEL-SR-3
(3ch)
MODEL-SR-5
(5ch)
Major application Endurance test of electronic parts
Test speed 1 – 10 cycles/sec.
Max. push force 1 – 5 kg/CH (Depends on speed)
Test stroke 10 mm (fixed)
Pressing shaft Φ10mm
Pressing plate 60×60mm
Sample table move range 50mm
Sample table move amount 2 mm/one turn of the handle
Sample table size 80×80mm
Setting counter 6 digits/CH
Power supply Single phase, 100 VAC
Standard set Tester, sample fixing jig
Options Damper jig
