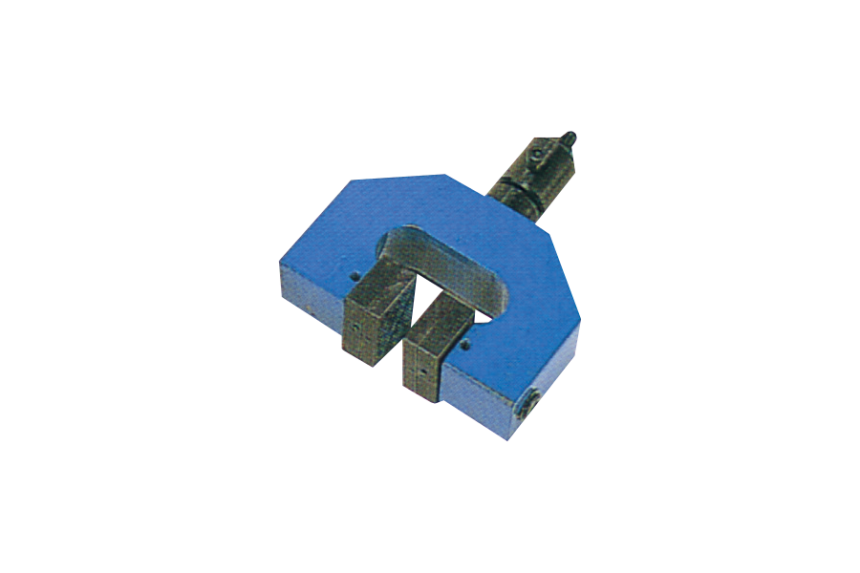

Large flat chuck MODEL-211

  • A large-capacity double tightening gripping jig.

Example of use

  • Tensile strength test (weld test, adhesion)

Specifications

MODEL-211
Capacity 5kN
Jaw size (W x D mm) W30×D60
Jaw max. opening width (mm) 20
Type Parallel flat plate individual screwing
Mounting part M20 x P1.5 female screw
Mass (g) 2800
Options Conversion screw
