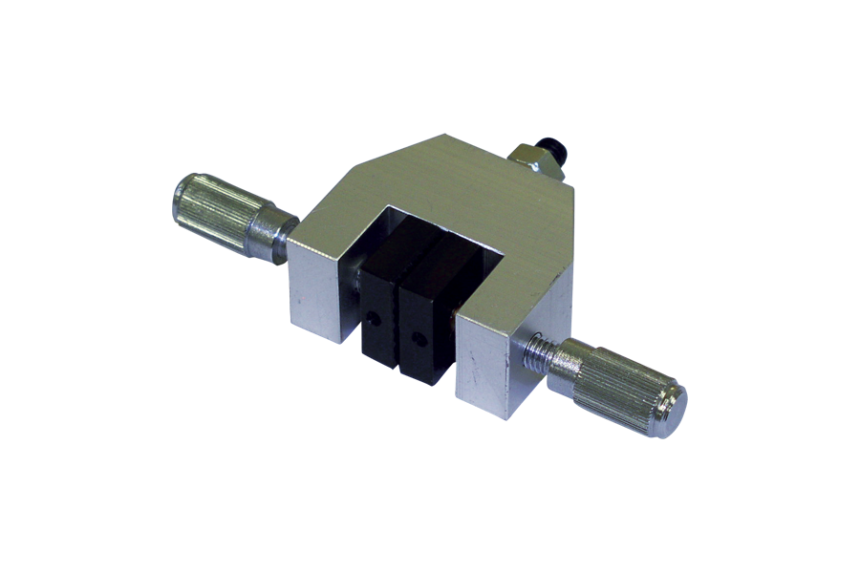

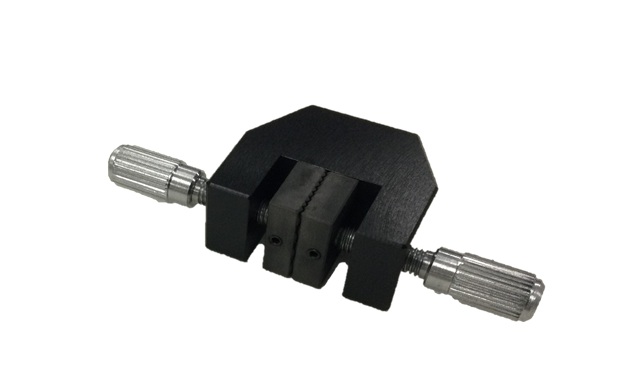

Small flat chuck MODEL-201

  • Suitable for tensile test by small load.
  • All-purpose type small-sized double tightening jig for a wide range of applications.

Example of use

  • Tensile test by a small load
  • Tape adhesion test
  • Push jig gripping

Specifications

MODEL-201
Capacity 50N
Jaw size (W x D mm) W20×D15
Jaw max. opening width (mm) 8
Type Parallel flat plate individual screwing
Mounting part M6 x P1 female screw
Mass (g) 125
Option Conversion screw
